Quick Pallet Maker

CHANGING THE COLOR OF A CALCULATED BOX

QPM Version: 4 and above

Quick Pallet Maker allows you to change the color of a box you have calculated and calculate a new pallet, without having to save the file and reopen it. For this, you start by selecting a box from the list to the right of the Available Solutions window. Example 01

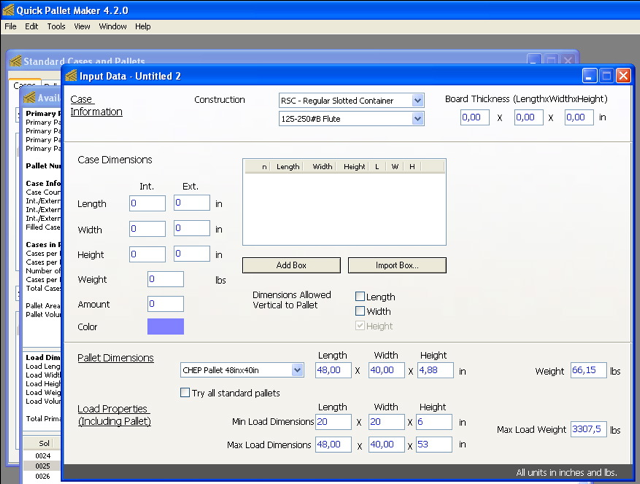

The next step is to open a new window starting from box dimensions. Example 01

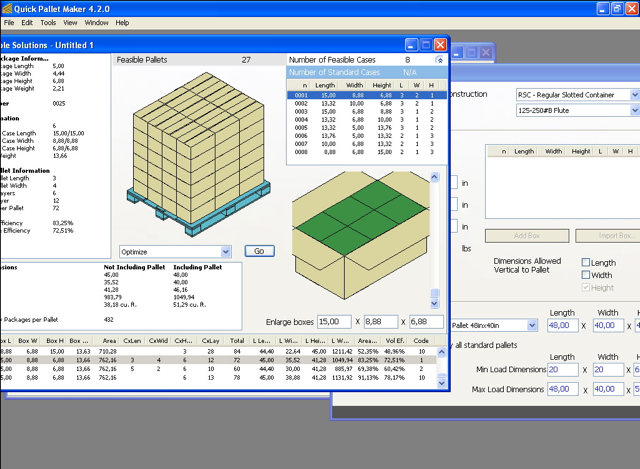

Then, we place the input window behind the Results window. Example 01
And drag the selected box to the table that contains the input boxes. Example 01

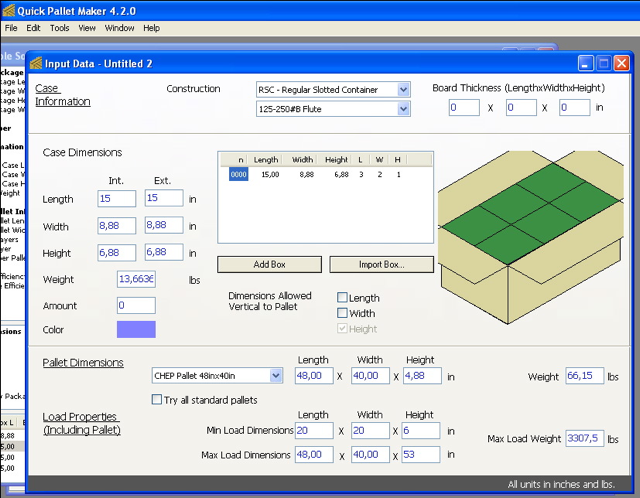

Once that is done, we will see that the calculated box has been transferred from one window to the other. But what we wanted to do is to change its color. Therefore, we click on the colored box below the amount cell. Example 01
A color palette will appear, depending on your operating system. You can select the color that will used for the box and close the window. Example 01
Then, after making sure that the box has been selected in the list, press the ctrl key and place the pointer over the "Add Box" button so it turns into an "Edit Box" button. Example 01
When we click the button, the color change will be made. Example 01
We can then calculate pallets using these new boxes or add new boxes to the list to create mixed pallets. Example 01
